What are we building?

Seaspan’s Vancouver Shipyards has been selected under the Government of Canada’s National Shipbuilding Strategy to be Canada’s West Coast Centre of Excellence and long-term partner for the building of Canada’s Non-Combat vessels. The multi-billion dollar Non-Combat program will create stable work over the next decade and beyond, and see the construction of up to 17 ships to start.

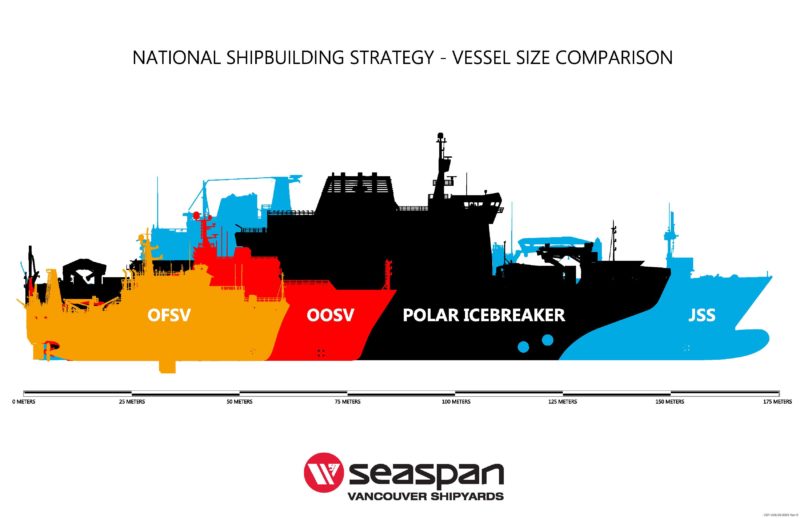

vsy-a06-09-0003-rev-0

The vessels we are building include:

3 – Offshore Fisheries Science Vessels (OFSV)

* All measurements in metres unless otherwise stated

LOA 63.4
Beam 16
Depth 8.7
Draft 6.15
Displacement 3247 MT
Installed Power 2250 kW
Accommodations 36 person
Speed 12.5 knots
Endurance 31 days

* Image Reproduced by permission of Canadian Coast Guard and RALion


1 – Offshore Oceanographic Science Vessels (OOSV)

* All measurements in metres unless otherwise stated104-fwd-stbd-sea

LOA 85.9
Beam 16
Depth 9.1
Draft 6.05
Displacement 4490 MT
Installed Power 3870 kW
Accommodations 56
Speed 13.7 knots
Endurance 84 days

* Image Reproduced by permission of Canadian Coast Guard and STX Canada Marine

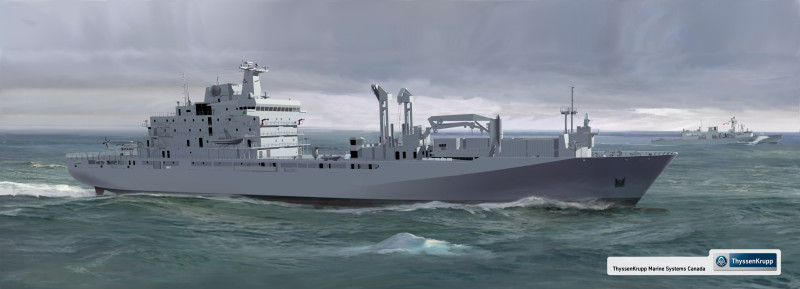

2 – Joint Support Ships (JSS)

* All measurements in metres unless otherwise statedWasserbild Canada JSS

LOA 173.7
Beam 24
Draft 7.4
Displacement 20,720 MT
Installed Power 2 x 7200 kW
Accommodations 233 persons
Speed 20 knots
Endurance 45 days

* Image Rendering courtesy of ThyssenKrupp Marine Systems Canada


1 – Polar Icebreaker

* All measurements in metres unless otherwise stated128-stbd

LOA 150.1
Beam 28
Depth 13.5
Draft 10.5
Displacement 23,700 MT
Installed Power 2 x 11,000 kW
Accommodations 100
Speed 18 knots
Endurance 270 days

* Reproduced by permission of Canadian Coast Guard and VARD Marine


Up to 5 – Medium Endurance Multi-Tasked Vessels

Up to 5 – Offshore Patrol Vessels
